Syscal Converter

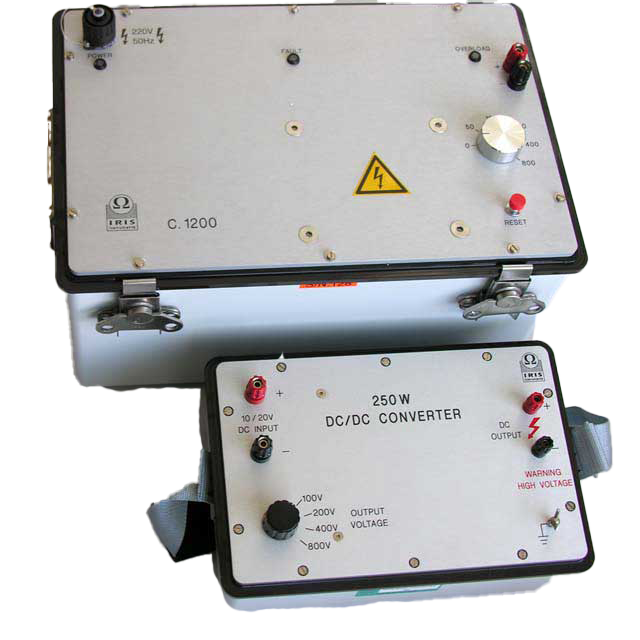

IRIS Instruments converters when more power is needed:

– A 250W DC/DC converter supplied by a 12V battery

– A 1200W AC/DC converter supplied by a standard motor generator.

The 250W DC/DC converter has been specifically developed for the Syscal R2. A manual switch enables to choose the output voltage between: 100V, 200V, 400V and 800V with a maximum power available of 250W corresponding respectively to maximum intensities of 2500, 1250, 625 and 312 mA. 12V battery powered.

The 1200W AC/DC converter has been specifically developed for the Syscal R2 and the Syscal Pro. It must be supplied by a motor generator of 4.5kVA. A manual switch enables to choose the output voltage between: 50V, 100V, 200V, 400V and 800V with a maximum power available of 1200W. The maximum output current is 2.5A.

The 1200W converter continuously checks the internal current value and the output voltage. For an optimal security, the device stops in security mode during short-circuit and bad voltage stabilization.

Powered by a 4.5kVA generator.
