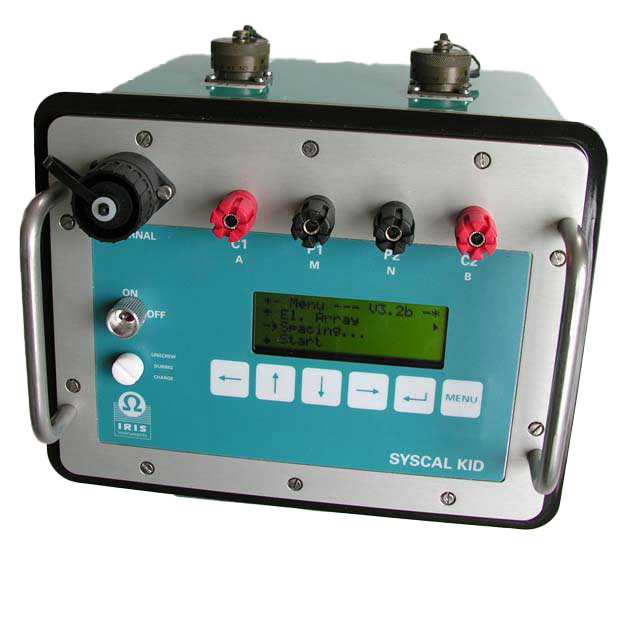

Syscal Kid

Syscal Kid

The is our most compact, entry level, system designed for very shallow, high resolution, sounding and profiling. The Kid comes in standard, single channel, and switch, single channel 24 switch, configurations.

  • Automatic ranging

  • Direct resistivity reading

  • Built in data logger

  • Ease of use

  • Field proof

  • Target applications

    • Archaeological

    • geological mapping

    • civil engineering

  • Lightweight (4.2 / 4.7 kg)

The switch version is suited for electrical resistivity imaging (ERI) applications.

Transmitter Syscal Kid Syscal Kid Switch
Voltage0 – 400 Vpp0 – 400 Vpp
Current0 – 500 mA0 – 500 mA
PowerAuto controlled internal 25 W DC/DC converterAuto controlled internal 25 W DC/DC converter
BatteryInternal battery or external 12 VInternal battery or external 12 V
Receiver Syscal Kid Syscal Kid Switch
Pulse duration1 s, 2 s1 s, 2 s
Channels1 channel1 (24 auto switch)
Input Impedance22 MΩ22 MΩ
Input Voltage15 V, automatic gain, input protection 200 V15 V, automatic gain, input protection 200 V
ReadingsResistivity, Self potential, Quality control, Induced polarizationResistivity, Self potential, Quality control, Induced polarization
Resolution / Accuracy1 µV / 0.2%1 µV / 0.2%
General Syscal Kid Syscal Kid Switch
Noise ReductionPower line rejection, SP linear drift correctionPower line rejection, SP linear drift correction
Storage1400 readings, stored on solid state memory1400 readings, stored on solid state memory
Weight4.2 kg (internal Rx / Tx batteries)4.7 kg (internal Rx / Tx batteries)
Operating T°–10 °C to +50 °C–10 °C to +50 °C
