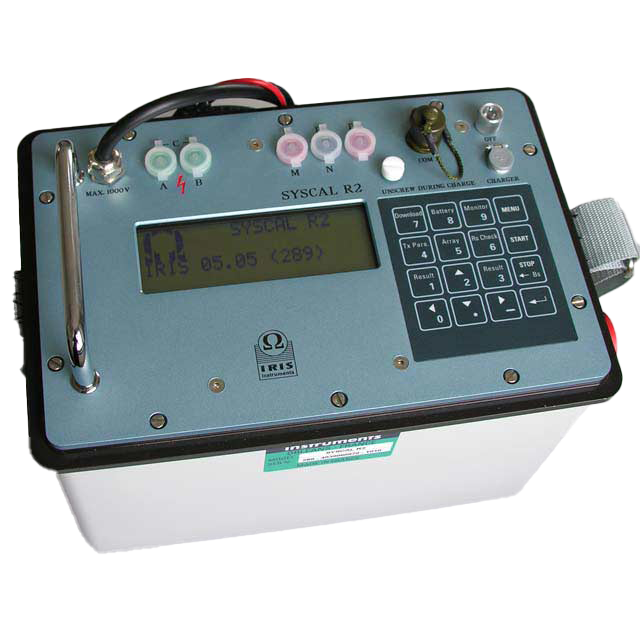

Syscal R2

Syscal R2

The Syscal R2 unit is a high-power resistivity / IP system designed for groundwater and mineral exploration, environmental, engineering and geological surveys.

This system uses one of the two available external DC sources for current injection:
– A 250W DCDC converter (12V battery powered)
– A 1200W AC/DC converter (motor generator powered)

It can be used with an external Switch Pro box.

The Syscal R2 combined with the 1200W converter is  adapted to reach large depths, suitable for:

  • groundwater exploration

    • detect fault in fractured bedrock aquifers

    • explore groundwater aquifers (depth and thickness).

  • civil engineering

  • groundwater and environmental projects

  • depth-to-bedrock determination

  • localization of weathered bedrock

Transmitter Specifications
Voltage0 – 1600 Vpp
Current0 – 2500 mA
PowerExternal 250 W DC/DC converter and 1200 W with external AC/DC
BatteryInternal battery
Receiver Specifications
Pulse duration250 ms, 500 ms, 1 s, 2 s, 4 s, 8 s
Channels2 channels
Input Impedance100 MΩ
Input Voltage15 V, automatic gain, input protection 1000 V
ReadingsResistivity, Self potential, Induced polarization (up to 20 windows), Quality control, and optional full waveform
Resolution / Accuracy1 µV / 0.2%
General Specifications
Noise ReductionPower line rejection, SP linear drift correction
Storage44,800 readings, up to 8 hrs full waveform, stored on solid-state memory
Weight5.2 kg (with internal battery)
Operating T°–20 °C to +70 °C
GeneralFiberglass, weather-proof casing
